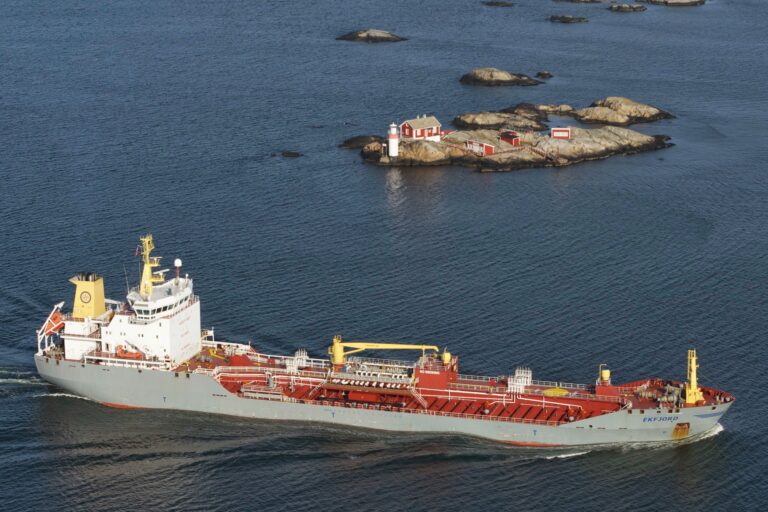

M/T Ekfjord

Built: 2009 by Celik Tekne Shipyard at Tuzla/Istanbul Turkey.
Flag: NIS

Signal letter: LAJX7

Trading area: World wide

CLASS:
DnV 1A1 ICE – 1A Tanker for Oil E0 NAUT.OC VCS-2 Clean HL(1,54) ETC TMON
Double skin vessel

DIMENSIONS:
Length over all:
Length between p.p
Breadth mid:
Depth upper deck:
Draft summer load:
Draft ballast:
Gross tonnage:
Net tonnage:
Reduced Gross:

b
144,05 m
133,80 m
23,00 m
12,40 m
9.00 m
6,02 m
12.162 ton
5.491 ton
9.918 ton​

CAPACITIES:
Deadweight,summer
Deadweight, winter:
Cargo, 98% volume:
Service slop tanks:
H.F.O Tanks, 98%:
D.O. tanks:
Fresh water tanks:
Pot. FW TK SB:
Tech. FW TK SB:
Tech. FW TK P:
W.B. tanks:

b
17.006 MT
16.510 MT
19.576,9 m³
275,0 m³
585,4 m³
109,0 m³
b
243,8 m³
90,4 m³
158,8 m³
7.677,1 m³

CARGO EQUIPMENT:
12 cargo tanks and 2 slop tanks, with one deepwell pump (hydraulic driven) in each tank.

Cargo/slop tanks epoxy coated.

Cargo handling 6-1 grades simultaneously segregated by two valves.

Cargo pumps:
Service slop tank pumps:
Cargo discharge capacity:
Ballast pumps:
Heating:
Tank washing:
Manifolder flanges:
Vapour return flanges:
Deck crane:

12 x 385 m³/h at 120 mlc
2 x 200 m³/h at 120 mlc
2.100 m³/h at 120 mlc
2×500 m³/h at 20 mlc
Stianless steel coils in all tanks.
(2 x 12 /1 x 2) Fixed machines.
7 x 12″ P/S
2 x 10″ each side.
10 tonnes/18 m.

MACHINERY:
Main engine, MCR:

b
1 x 5.500 kW
